ELID Tripod Turnstile – ELID EGT-138
Tripod turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read facilities, such as access control system, barcode scanner, card reader, time & attendance system, card collector, biometric system, consumption system, ESD system and fare collection
system etc.
As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.
-
Optional direction indication of Mulit LED
-
Operation: on receiving a signal from the access control system or push button, the arms unlock to open.
-
Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds.
-
Drop-arm function: the arm can drop automatically, when the power is failure or fire alarm release.
-
Auto-lift-arm function: when the power on again, the arm can also lift automatically.
-
Integrated pulse counter with separate counting for both directions (optional).
-
With interface of dry contact relay, compatible with all the access controller.
-
Equipped with free control software for man-machine interface & control command SDK.
-
Through the management computer to realize remote control and management.
Technical Specifications
| Model | EGT-138 |
| Unit classification | Fully Automatic |

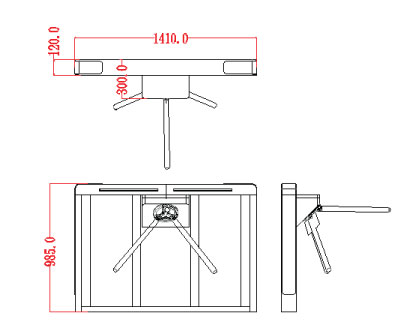

| Housing Dimensions | L1410*W120*H985MM |
| Housing material | SUS 304 stainless steel |
| Arm material | 304 stainless steel |
| Arm width | 500MM |
| Hydraulic shock absorber | Non |
| Passageway width | 550MM |
| Orientation | Single or Bi-Directional |
| Drive | Motorized |
| Voltage | AC220V±10%, 50Hz±10% |
| Logic Voltage | 24VDC |
| Motor | 24VDC brushless motor |
| The max tolorence of the pole | 40Kg |
| MTBF | 5 millions |
| Communications port | RS232/RS485 electric standard, communications range: ≤1200m |
| Flow Rates | 30 persons/min |
| Relative humidity | 5% ~ 90% not condensed |
| Relative humidity | 5% ~ 90% not condensed |
| Working Environment | Indoor or outdoor |
| Temperature range | from -10 °C to 50°c |
