Swing Gate – ELID EGSH-8028
Speed gate controls pedestrian access between public and secure areas. Swing gate lane adopts an array of optical sensors to determine the number and direction of persons passing through the lane. Typical used in motorcycles and bicycles with more than 1200MM passageway width. Speed gate system is provided with a standard electric interface and can easily integrates common 3rd.party equipment with read facilities . As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special re control interface is equipped in the system to meet the requirement of re control passage, so that gate release open may be realized in emergency for.
- Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller. With normally open & normally closed working mode.
- Automatic check fault and alarm prompt function: to convenient for users to maintain. The running status of device can be set up through pressing the built-in small keyboard of the main control board. The device is locked until a valid open signal is received.
- Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.
- Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
- Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).
- Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
- LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
- ADA compliant passageway widths at 900mm available (handicappedlane without anti tailgating detection).
- Remote control and management function: Through the management computer to realize remote.
Technical Specifications
| Model | EGSH-8028 | EGSH-8028S |
| Unit classification | Single mechanism | Double mechanism |

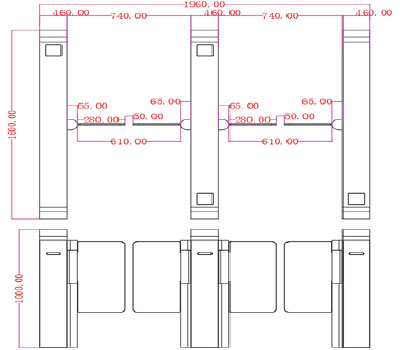

| Housing Dimensions | L1600*W160*H1000MM | L1600*W160*H1000MM |
| Housing material | SUS 304 stainless steel | |
| Barriers material | 304 stainless steel | |
| Barriers width | 250-600MM | |
| Barriers transmission angle | 180° | |
| Passageway width | 550~1200MM optional | |
| Orientation | Single or Bi-Directional | |
| Drive | Motorized | |
| Voltage | AC220V±10%, 50Hz±10% | |
| Logic Voltage | 24VDC | |
| Motor | Servo motor+ARM control | |
| Infrared sensors | 10 pair/lane | |
| Opening/closing time | 1.0 seconds | |
| The time required to running state after power on |
3.0 seconds | |
| Auto-reset time after failure | 10.0 seconds | |
| Input port | Relay dry contact signal, pulse or level signal | |
| MTBF | 10 millions | |
| Communications port | RS485/RS232/TCP/IP electric standard, communications range: ≤1200m | |
| Flow Rates | 30~35 persons/min | |
| Relative humidity | 5% ~ 90% not condensed | |
| Working Environment | Indoor or outdoor | |
| Temperature range | from -10 °C to 50°c | |
