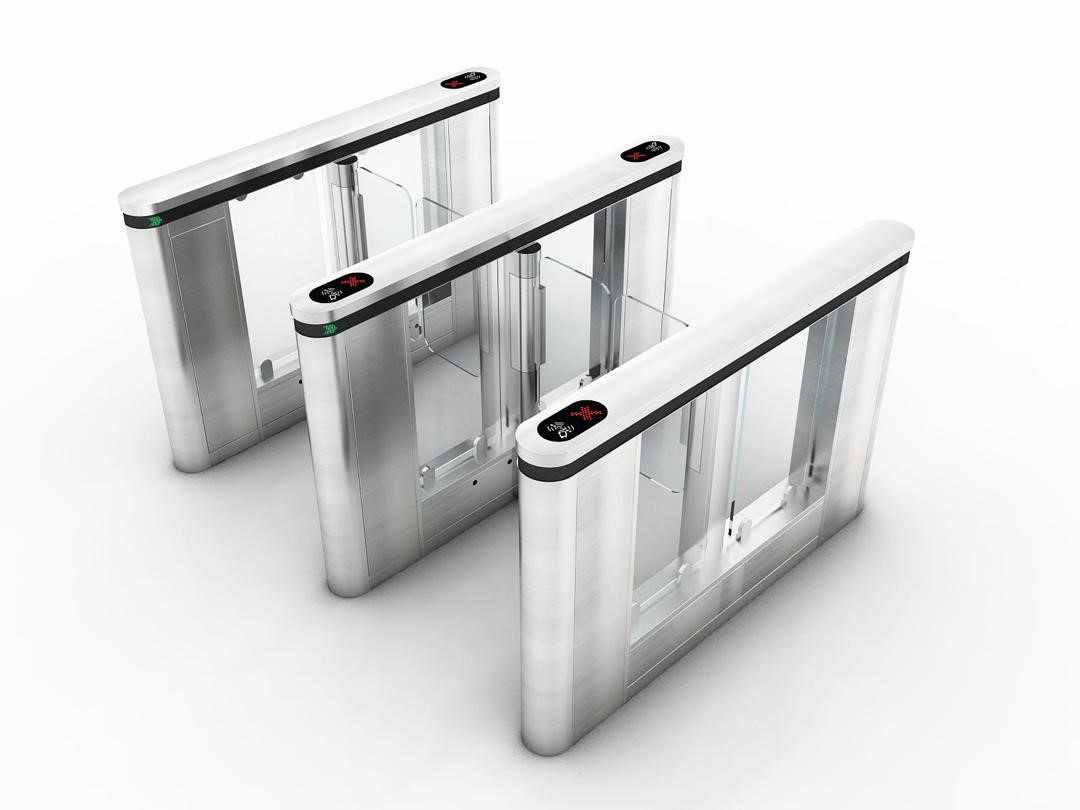

Swing Gate – ELID EGSH-8008
EGSH-8008 ELID Swing Gate is high tech barrier which mainly provides management for passageway. This product is exquisitely designed completely with high level of function which is suitable for high-end condominium, intelligent buildings, hotel and club etc.
- Alarm Function - When there is an unauthorised entry, alarm will trigger automatically and the motor will locked
- Swing gate can easily configured with the mainboard installed within the body of the turnstile
- Swing gate able to detect tailgating or people walking on the different directions
- Swing gate always in the lock position. If there is any intrusion, the alarm will trigger
- The arm has the collision avoidance function. When the turnstile arm is closed and under a collision, the arm will open to protect the motor
- Automatic Reset Functions: If you didn't pass the turnstile within stipulated time (10s) after swipe your card, the system doesn't allow you to pass through the turnstile.
Technical Parameter
- Housing material: standard 304 stainless steel
- Thickness : 2.0mm thickness
- Working voltage: A AC220 ±10% V/50 ±10% HZ
- Driving motor: Servo motor

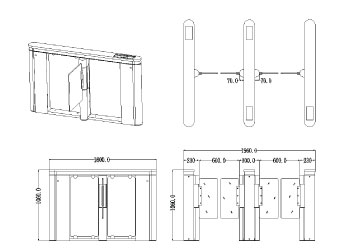

- Size: L1600*W160*H1060mm
- Swing length: 290 mm
- Max Passage width: 1200mm
- Direction: single or bi-directional (optional)
- Working environment: indoor/outdoor (with a tent over) -10°C~70°C
- Relative humidity: ≤90% coagulation free
- Time of opening/closing: 1 second
- Pass speed: 40 persons/min (open), 25-30 persons/min (closed)
- Time to work after power on: 3 seconds
- Reset time after break down: 10 seconds
- Normal running life: more than 5 million
- Communication interface: standard RS485 interface, distance ≤1200m
- Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
