ELID Speed Arm Barrier Gate – ELID EGB-220



img EGSH 8028


EGB 220 series arm barrier offers an elegant design that is aesthetically pleasing. LED light strip can be added on the arm to lead the way for approaching vehicles. The added LED strip strongly enhances visibility to both vehicles and passengers, particularly in pitch-black environments appearance.

This premium boom barrier has 140W D.C. motor drive, 24v operated that provides trouble-free, noiseless operations. Barrier open/close can be adjusted between 1.5sec to 6sec. The operation direction can be changed to LEFT or RIGHT. In addition to push buttons and wireless control, the barrier also includes safety peripherals such as photo beam sensors/ loop detectors.

The barrier has the feature of 'Auto Arm Bounce' when it comes into contact with vehicles. Also, the boom arm will 'swingoff' if the vehicle tries to collide with the closed arm. This will not cause any demage to the barrier housing or arm. The boom length can be up to 6m for standard straight arm, or up to 4 meters for folding arm.


Technical Specifications



Model EGB-220
Working temperature (motor) -30˚C+60˚C
Rated voltage DC24V
Running speed 2.5s-8s
Rated current 9.5A
Rated power 150W
No-load speed 1850rpm
Rated speed 1400rpm
Rated torque 59.6N.m
Relative humidity ≥85%
Remote control distance ≤100M (in the open place)
P Degree P54
Max length of arm 6M

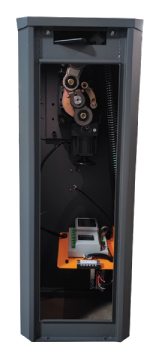

 diagram EGSH 8028
